In this post, I would like to introduce you into how Traefik helped us shape our cloud ecosystem at HolidayCheck. In particular, I will give a brief in-depth introduction on how we implemented our canary release process for our microservice architecture with Traefik on Google Kubernetes Engine (GKE).
HolidayCheck AG operates the biggest independent hotel review and booking portal in the German-speaking area. Our vision is to become the most Urlauber*-friendly company in the world! Our business portfolio has full package (flight, hotel, insurance), hotel-only, and cruise offerings. In addition to that, we are a platform which shares hotel reviews and pictures.
- Urlauber: German term for holidaymaker, vacationer
Our teams strive to keep a high level of urgency for delivery. Therefore they maintain their delivery pipelines themselves. An inquiry across our continuous delivery (CD) pipelines showed that our teams use one of the following designs:
- Production follows Staging: This is the most classic design among all. It prevails in services with older staged workflows where changes are tested in an isolated staging environment without real user traffic.
- Production with Feature Flags: This workflow is in place for a constant high pace of changes, especially with UX impact.
- Production with A/B Tests: Another variation of the last design is to keep multiple versions of the system online (e.g., A and B version) and split user traffic manually by an operator.
Although all three designs have a positive impact on our release quality already, they are still very tedious to operate or widen the human error vector. To minimize toil and human errors, we introduced another complementary release strategy — canary releases.
Canary Releases: Our Design
In short canary releases is an automation extension for our CD pipelines to compare a new release (the canary group) against the previous version. Ideally, the old deployment (the main group) is not touched by this operation. Instead, a new deployment with the old configuration, the control group, is created at the same time as the canary.
Our design is based upon a strict set of decisions:
- User traffic needs to be split across the main deployment and the other two groups, whereas canary and control need an equal traffic share to keep comparisons sane.
- The CD pipeline needs a data source (e.g., metrics, logs, etc.) to evaluate the canary soundness in comparison to the control instance. The decisions can vary from shifting more traffic to the canary/control group, take canary down or replace the current main with the canary.
- The three instance groups need to operate independently from each other in isolation.
Enter Traefik Splitting
One of the significant benefits to using Traefik is that we can rely on building on low-entry barrier features. Although our platform is hosted on GKE, we still need to tailor features according to our use cases. Canary releases being one of them requires us to split traffic across deployments.
Traefik being our single proxy to route traffic to our deployments, has a built-in feature to split traffic across deployment groups through a single Ingress. Therefore a canary deployment can be accomplished with the following Ingress specification:
apiVersion: extensions/v1beta1 kind: Ingress metadata: annotations: traefik.ingress.kubernetes.io/service-weights: | my-service: 60% my-service-canary: 20% my-service-control: 20% name: my-service spec: rules: - http: paths: - backend: serviceName: my-service servicePort: 80 path: / - backend: serviceName: my-service-canary servicePort: 80 path: / - backend: serviceName: my-service-control servicePort: 80 path: /
Our Canary Workflow
Despite that traffic splitting is a cornerstone to enable canary releases, it is not sufficient. We still need to handle our canary deployments on GKE automatically. Our CDs should be able to automatically make one of the following decisions by comparing the canary with the control group:
- Split more traffic from the main group to the canary and control groups.
- Demote the canary and control groups because of an unacceptable error rate and shift full traffic back to the main group.
- Promote the canary group to become the new main group and remove the control and old main groups.
Furthermore, before traffic splitting we need to provide resources for our canary and control deployments. On the one hand, this ensures that an appropriate replica count exists to handle the traffic. On the other hand, traffic splitting can only happen from a third-party inside Kubernetes that can observe the replica count of the canary and control deployments.
In short, the above CD decisions are accomplished by sending updates for the canary and control deployments to the Kubernetes API server. A separate canary controller handles the rest.
The Canary Controller

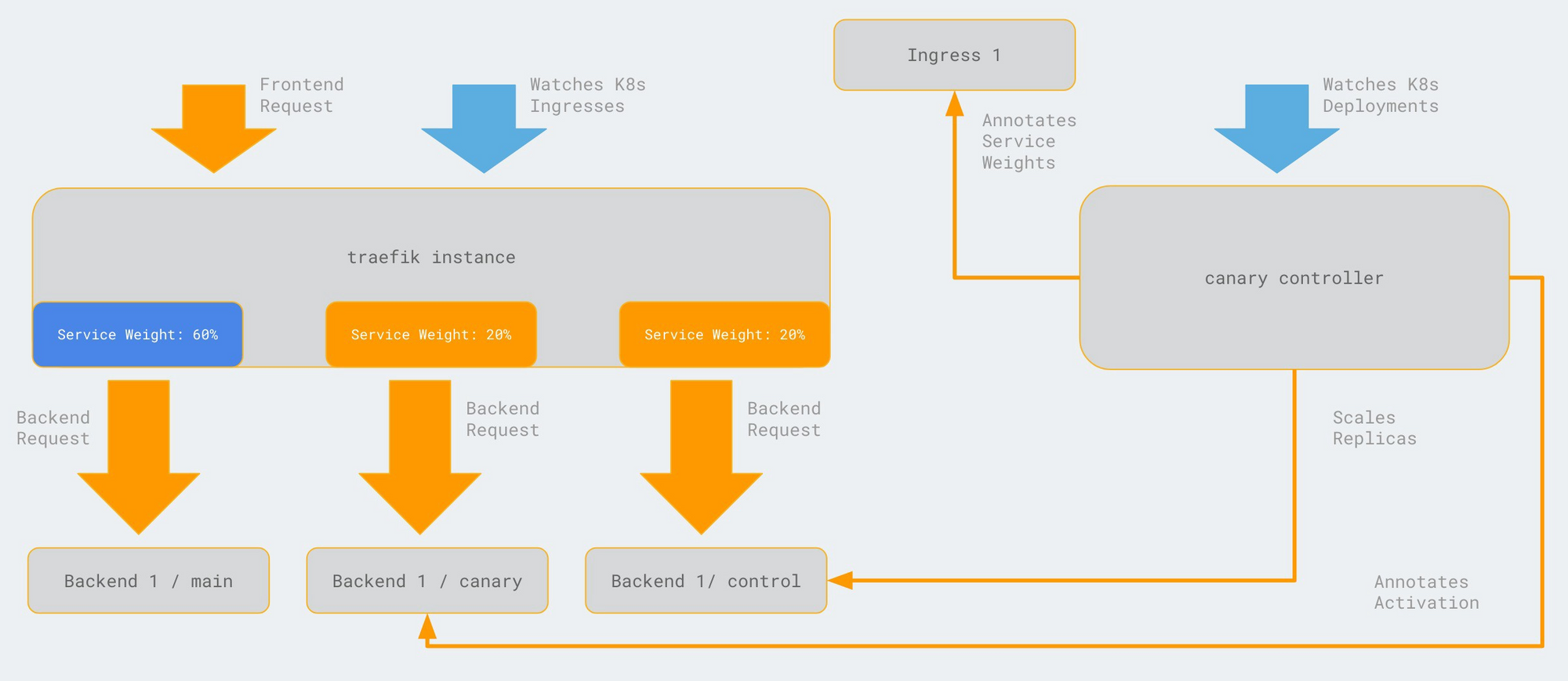

After sending the updates to Kubernetes the deployments of the canary and control groups, as well as the Ingress object, will be reconciled by a canary controller. The controller is responsible for the following actions:
- Scale the canary and control deployments:
The number of replicas for the canary and control deployments is based on the traffic share
canaryReplicas = controlGroupReplicas = ceil(appReplicas * canaryTrafficPercent / 100)
- Enable the canary and control deployments: This means to identify the Ingress object of the main deployment and add the service weights annotation for each deployment.
- Disable the canary and control deployments: In case of promotion/demotion of the canary release, the controller removes the service weights from the Ingress object.
A Canary Release from Kubernetes Perspective
If you are using Kubernetes, a simple deployment can contain multiple annotations to express use case specific information. Thus, our CD pipelines communicate each action by updating the annotations of the required deployment specifications. These annotations declare the requested state of our canary release, which in turn is reconciled by the canary controller.
Our canary release implementation requires the following annotations to express the state, as well as the Traefik service weight per deployment:
holidaycheck.com/canary-active: bool: Represents the current state of the canary release in each canary and control deployment.
holidaycheck.com/canary-percent: float: Represents the service weight which should be applied for each the canary and control deployment.
Let’s say we have a service
my-service at version
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: my-service namespace: my-namespace spec: replicas: 10 template: name: my-service spec: automountServiceAccountToken: false containers: - image: our-registry/my-service:v1.6 imagePullPolicy: IfNotPresent
We want to evaluate a newer version
v1.7 of this service with a canary release, e.g.:
apiVersion: extensions/v1beta1 kind: Deployment metadata: annotations: holidaycheck.com/canary-active: "false" holidaycheck.com/canary-percent: "20.0" name: my-service-canary namespace: my-namespace spec: replicas: 1 template: metadata: name: my-service-canary spec: containers: - image: our-registry/my-service:v1.7
Accordingly, a control deployment will be an almost identical copy of the main deployment specification. The only addition here is the extra annotations, e.g.:
apiVersion: extensions/v1beta1 kind: Deployment metadata: annotations: holidaycheck.com/canary-active: "false" holidaycheck.com/canary-percent: "20.0" name: my-service-control namespace: my-namespace spec: replicas: 1 template: metadata: name: my-service-control spec: containers: - image: our-registry/my-service:v1.6
Next, the canary controller will reconcile the state of our three deployments to adhere to our replica count specification. Therefore splitting 20% of our traffic from a deployment with ten replicas results in canary and control deployments with two replicas each.
Finally, the controller will translate the canary annotation
canary-percent for each deployment to the appropriate Traefik service weights annotation in the Ingress object. Also the
canary-active will be set to
true for the canary and control deployments:
apiVersion: extensions/v1beta1 kind: Ingress metadata: annotations: traefik.ingress.kubernetes.io/service-weights: | my-service: 60% my-service-control: 20% my-service-canary: 20% name: my-service
Note: To minimize toil creating the above specifications, our teams use a small CLI tool that generates and applies those for them to Kubernetes.
One challenge remains, namely how to separate Traefik backend metrics per endpoint. The current Traefik
v1.7implementation does not provide a distinction of metrics per backend endpoint. However, you can circumvent this issue by relying on application level metrics, which can be separated by custom labels for the canary, control, and main group accordingly.
I hope this article has been helpful and will help you to tailor your canary release workflow for your platform based on Traefik’s excellent features.
In summary, we met our main goal to build a slim solution for canary releases with Traefik without introducing the complexity of a full service mesh.
The above implementation is based on:
- Traefik v1.7
- Kubernetes v1.12
